পণ্যের বিবরণ:
প্রদান:
|
| উৎপত্তি স্থান:: | চীন (মূল ভূখণ্ড) | ব্র্যান্ড: | স্মার্টজেন |
|---|---|---|---|
| অল্টারনেটর ফ্রিকোয়েন্সি: | 50Hz / 60 Hz | মডেল নম্বর:: | HGM1780 |
| প্যানেল কাটআউট (l*w*h/mm): | 110 মিমি x 90 মিমি | নিয়ন্ত্রক: | HGM420/410 |
| স্থিতিস্থাপক:: | 88 মিমি x 76 মিমি x 44 মিমি | ওজন:: | 0.2 কেজি |
| বিশেষভাবে তুলে ধরা: | generator paralleling controller,generator speed controller |
||

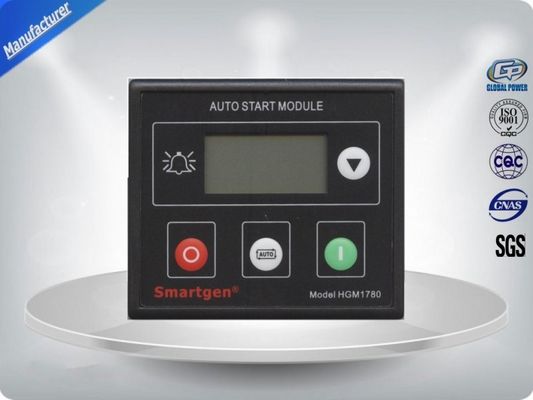

10Kw Diesel Generator Controller 1500Rpm 2 Cylinder AC1.5kV / 1min 1mA leakage current
Specifications :
|
Item |
Content |
|
Operating Voltage |
DC8. 0V to 35. 0V, Continuous Power Supply |
|
Power Consumption |
Standby, 12V-0.3W, 24V-0.4W Working, 12V-1W, 24V-1.1W |
|
Alternator voltage Input |
1P2L 15V AC ~ 360 V AC (ph-N) |
|
Alternator Frequency |
50/60Hz |
|
Speed sensor voltage |
1V to 24V (active value) |
|
Speed sensor Frequency |
Max. 10kHz |
|
Max. accumulative running time |
99999.9 hours (it is 1/10 hour after decimal point, means changing/6 min.) |
|
Start Relay Output |
1Amp DC28V DC B+ power on to output |
|
Fuel Relay Output |
1Amp DC28V DC B+ power on to output |
|
Stop Relay Output |
1Amp DC28V DC B+ power on to output |
|
Idle Relay Output |
1Amp DC28V DC B+ power on to output |
|
Configured Relay Output |
1Amp DC28V DC B+ power on to output |
|
Switching value input port |
Active when connected with B- |
|
Overall dimensions |
88mm x 76mm x 44mm |
|
Panel cut off |
78x66mm |
|
Working conditions |
Temperature, (-25~+70)ºC Humidity, (20~90)% without condensation |
|
Storage Condition |
Temperature, (-30~+80)ºC |
|
Protective Level |
IP55, when waterproof rubber ring added between controller and its panel. IP42, when waterproof rubber ring not have between controller and its panel. |
|
Insulation Intensity |
Object: among in input/output/power Quote standard: IEC688-1992 Test way: AC1.5kV/1min 1mA leakage current |
|
Weight |
0.15kg |
Description
HGM400 series automatic controller, integrating digital, intelligent and network techniques, is used for automatic control system of generator. It can achieve automatic start/stop, data measuring and “three remote” functions (SG485 module is needed). The controller uses LCD display, optional Chinese, English, Spanish and Russian display interface with easy and reliable operation.
HGM400 series automatic controller uses micro-processing technique which can carry out precision measuring, constant value adjustment, timing and threshold setting and etc.. All the parameters can be adjusted from front panel or through programmable interface (USB to LINK, can use SG72 adaptor) via PC. It can be widely used in all types of generator automatic control system for compact structure, simple connections and high reliability.
